Product Overview

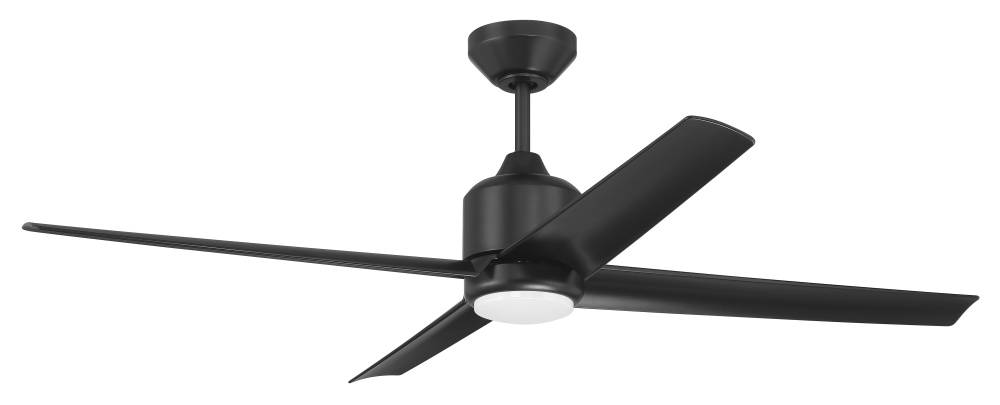

The Quell 52" Indoor/outdoor damp rated ceiling fan is the perfect combination of exceptional performance and contemporary design to knock out the heat and deliver year round comfort. With the quiet energy saving 6-speed, reversible DC motor, set of four custom blades, integrated dimmable LED light with optional lens cover included and is easily controlled with either the included remote controls or the integrated WIFI featuring breeze and timer functions compatible for use with most smart home devices, smart phones and systems with no additional hub needed.

Standard Information

Category:

Fans

Subcategory:

Ceiling Fans with Light

Finish:

Black

Style:

Contemporary

Option:

Title 24

Damp Rated

LED

Refinement Options

Category:

Fan

Finish:

Flat Black

Style:

Contemporary

Option:

Damp Rated

LED

Title 24

Family:

Quell

Voltage:

120 V/60 Hz

Shade:

Frost White

Number of Bulbs:

1 Bulbs

Blade Finish:

Flat Black

Blade Pitch:

12

Blade Span:

52

Blades Included:

4

Bulb Dimmable:

Yes

Bulb Hours:

50000

Canopy:

2.4 H x 5.91 W

Kelvin:

3000

Light Kit Included:

Yes

Lumens / Light Output:

595.12

Material:

Silicon, Steel, Aluminum, Plastic, Copper

Motor Fan Speed:

6

Motor Size:

100 x 20

Ship Carton Height:

9.65

Ship Carton Length:

26.57

Ship Carton Width:

8.27

Ship Weight:

13.49

Warranty:

Limited Lifetime Warranty

Weight:

11.86

Blade Material:

ABS

Bulb CRI:

90

Bulb Included:

Yes

Carton Cubic Feet:

1.23

CFM High:

3731

CFM Low:

1409

Control Method:

Remote/WiFi

Damp Rated:

Yes

Downrod Length 1:

6

JA8:

Yes

Leadwire Length:

80

LED:

Yes

Location Rating:

Damp Rated

Max Wattage:

12 W

Mount Type:

Dual (Flat or Angled Ceiling)

Package Quantity:

1

Reversible Motor:

Yes

Safety Rating:

cETLus Approved

Shade Material:

Acrylic

Socket Type:

Integrated LED

Title 24:

Yes

WIFI Control Included:

Yes

6 inch Downrod Included

Dual Mount (Flat or Angled Ceiling up to 23°)

Energy Guide 3174 CFM, High Speed 4731 CFM

Energy Saving, 6-Speed Reversible DC Motor

Included (Optional) 1 x 12W Dimmable LED Bulb Optional Lens Cover Included

JA8/Title24 Compliant

Limited Lifetime Warranty

Quell ABS Blades Included

Suitable for Damp Locations

Two options to Control fan: Included WIDC Handheld Control or Wi-Fi enabled Smart by Bond to use with most smart phones and devices

Manufacturer Info

Manufactured By:

Craftmade
